DAPHNE CUT HL 25
High Performance Cutting Oil
Description
High quality Electro-Discharge Machine (EDM) oil specially formulated with synthetic base oil to give unsurpass performance. This clear, transparent dielectric fluid is odourless and non-toxic, together with its low viscosity and high flash point, it helps to promote a safe and pleasant working environment.
Application

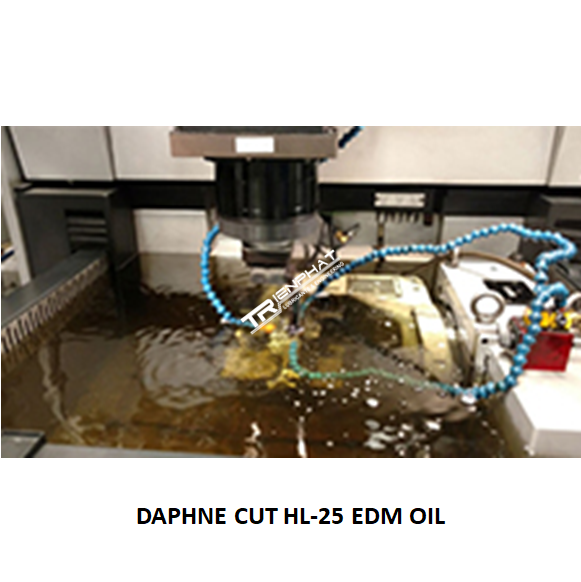

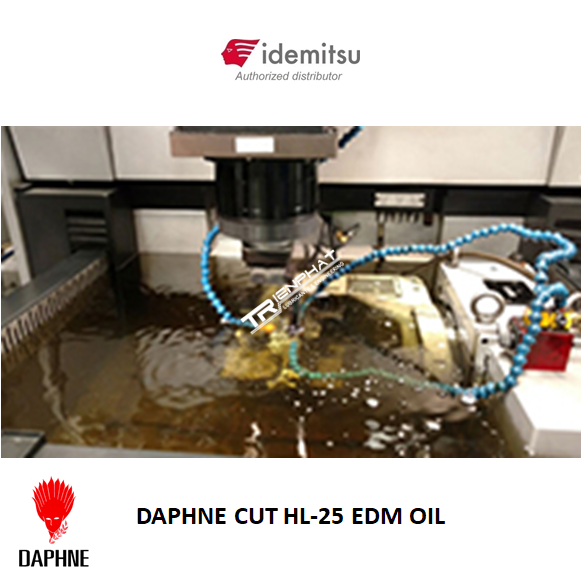

Recommended as a dielectric fluid for spark erosion machining operations (EDM use).
Characteristics
1. Synthetic Base Oil – Excellent oxidation resistant and long oil service life due to its synthetic base oil.
2. High Flash Point – To promote better work safety.
3. Odourless & Non-Toxic – No unpleasant odour and non-toxic, it does not cause dermatitis, thus, promoting pleasant and healthy working environment.
4. Clear Transparent Fluid – Enables excellent visibility during machining operations.
Packing
20L pail, 200L drum
Typical Specifications Daphne Cut HL 25-S
ASTM METHOD
Appearance – Colourless
Colour D-1500 L0.5
Density 15 oC g/cm³ D-4052 0.7884
Total Acid No. (mgKOH/g) D-974 0.01
Viscosity, cSt@ 40 oC D-445 2.874
Flash Point (PM), oC D-93 92
Distillation Range, oC IBP – 206
EP 256
